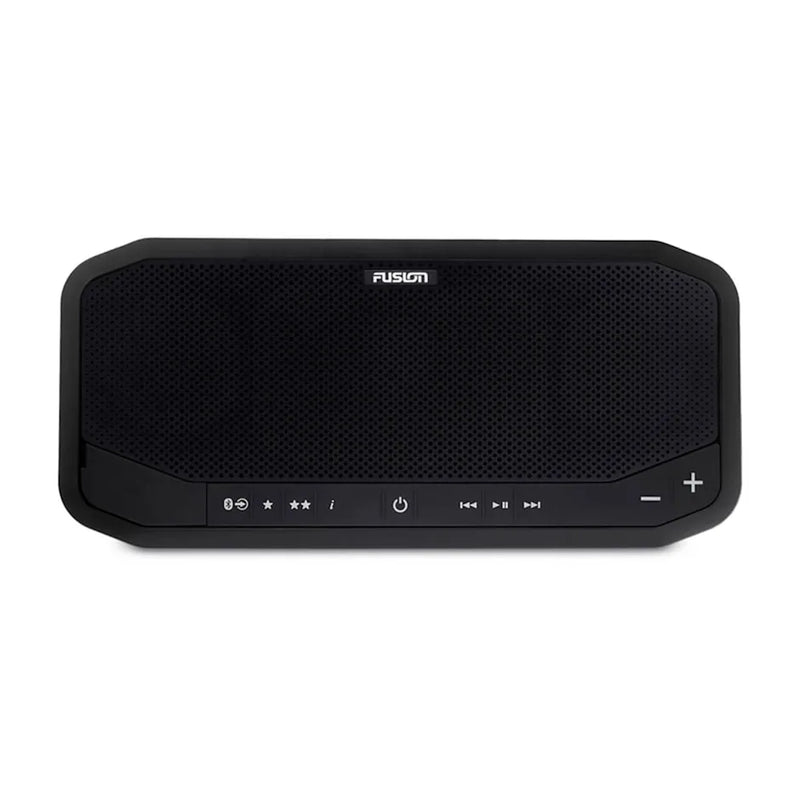

Garmin PS-A302BOD,PanelStereo,AM/FM/BT/USB/AUX/LO,Bk,Out,Rtl

Garmin PS-A302BOD,PanelStereo,AM/FM/BT/USB/AUX/LO,Bk,Out,Rtl

Kickstart your boat party with Garmin PS-A302BOD, the ultimate panel stereo from Fusion with preconfigured Digital Signal Processing technology that reproduces superior quality audio in high frequency.

Built to keep you entertained on-board, this panel stereo operates on a 12-V DC power and is a plug and play module that requires no complicated installation process. Fusion's IP65 rating for ingress protection ensures your sound system is able to deliver impeccable audio even in harsh marine conditions.

Enjoy optimized audio from a single unit that combines built-in amplification, stereo source selection, two 3-inch speakers and a surface bass radiator. A versatile design that lets you set up the panel stereo with a conventional flush mount or premium flat finish, Fusion Panel Stereo delivers higher efficiency and greater output with its built-in Class-AB amplifier.

With multiple mounting options, compact form factor and smart control options, this is one panel stereo that amplifies your boat parties to the next level.

Specifications:

Dimension: 13.54" x 6.1" x 1.97" (344 x 155 x 50 mm)

Weight: 2.54lbs (1.15 kg)

Water rating: IP65 (when properly installed)

Operating temperature: 32° to 122° F (0° to 50° C)

Current (max): 10 A

Networking

BLUETOOTH® wireless range: up to 30 ft

ANT® wireless range: Up to 10 ft

Wireless frequencies/protocols: BLUETOOTH®: 2.4 GHz @ +9 dBm nominal ANT®: 2.4 GHz @ +9 dBm nominal

Audio Amplifier: Class-D

Electrical Features

Power Input: 10.8 - 16 VDC

Compass-safe distance: 7.6" (229 mm)

Stereo Features

Peak power: 140 watts

Rated power output (2 ohm): 43 watts RMS x 2 @ 14.4 V input < 1% THD

Built-in Digital Signal Processing (DSP): yes (preconfigured)

Fusion-Link™ control: yes (smart device and Garmin watch)

Multi-language interface: Chinese (Mandarin), Dutch, English, French, German, Italian, Japanese, Spanish

Software updates: USB

Warranty: 1 year

Supported sources:AM, FM, BLUETOOTH®, USB audio, iPhone®, iPod®, AUX x2, AOA

Connections

Auxiliary inputs (RCA): 2

USB 2.0 ports: 1

AM/FM ports (Motorola antenna connector): 1

Line out: 1 RCA Output (AUX)

What's in the Box:

1 x Fusion Panel-Stereo

1 x Stereo trim

6 x 6-gauge, self-tapping stainless steel screws

1 x Power wiring harness

1 x Documentation
