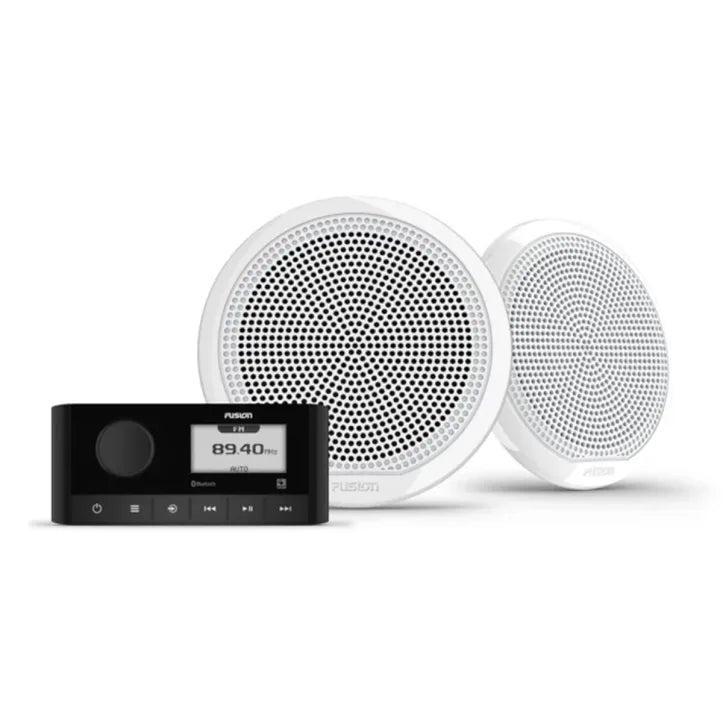

Garmin MS-RA60K1CW Fusion Kit MS-RA60 EL-F653W Suncover Antenna Speaker Kit

Garmin MS-RA60K1CW,Fusion,Kit, MS-RA60+EL-F653W+Suncover+Antenna

Garmin MS-RA60K1CW is the exclusive sound system for your aqua adventures, a comprehensive kit with Fusion MS-RA60 marine stereo, EL series F653W speaker and a Fusion stealth antenna.

The ready-to-install sound system boasts of a built-in Class D amplifier that plays curated playlists from your compatible Garmin MFD, smart device or Garmin watch optimal audio quality.

Fusion kit is aesthetically designed to appeal to the modern trends with black glass panels that blend in with your boat control decor. Enjoy piloting two separate audio zones with our Multi-Zone technology and if planning for wilder times expand your audio system with compatible Fusion speakers, subwoofers and amplifiers.

Specifications:

Physical dimensions (H x W x D): MS-RA60: 2.68" x 6.18" x 4.06"

Weight: MS-RA60: 11.1 oz

Water rating: IPX6 and IPX7 (front panel only, when properly installed)

Power input: 10.8-16 VDC

Operating temperature range: 32° to 122° F (0° to 50° C)

Current (max.): 15 A

BLUETOOTH® wireless range: Up to 30 ft (10 meters)

ANT wireless range: Up to 10 ft (3 meters)

Wireless frequencies/protocols: BLUETOOTH 2.4 GHz @ +12 dBm nominal

ANT 2.4 GHz @ +7 dBm nominal

Compass-safe distance: 5.9" (150 mm)

Display: MS-RA60: 2.3" perimeter bonded monochrome dot matrix LCD

Built-in amplifier: Class-D (minimum 4 ohm impedance)

Peak power: MS-RA210: 200 W

Rated power output (4 ohm): MS-RA60: 22 W rms x 4 @ 14.4 V input < 10% THD

Fusion-Link™ control: MS-RA60: yes (with smartphone and Garmin watch)

Multi-Zone™ technology: 2 zones

BLUETOOTH wireless technology: yes

ANT wireless technology: yes

DAB+ ready: MS-RA60: yes (DAB tuner built in)

Multi-language interface: MS-RA60: Dutch, English, French, German, Italian, Spanish

Software updates: MS-RA60: Over-the-air software updates via BLUETOOTH wireless technology using the Fusion-Link app

Warranty    : 1 year

Sources: MS-RA60: AM/FM/BLUETOOTH/AUX x1/DAB+ (available in Europe and Australia only)

Auxiliary input: One RCA input (AUX)

AM/FM radio: One Motorola antenna connector port

Speaker: MS-RA60: 4 speaker connections (2 zone amplified)

RCA pre-out (left, right and subwoofer): MS-RA60: 1 zone (requires external amplification)

Line out: MS-RA60: Zone 1 (L + R, requires external amplification)

Subwoofer out: MS-RA60: Zone 1 (requires external amplification)

Speaker

Dimensions (Diameter x Depth)    EL Classic Speaker: 6.93" x 2.26" (176 x 57.5 mm)

Water rating: IP65

Configuration    EL Speaker: Full range

Speaker size: 6.5"

Peak power (watts): EL Speaker: 80 W

RMS Power (watts): EL Speaker: 20 W

Sensitivity (1 watt/1 meter): EL Speaker: 88 dB

Frequency response: EL Speaker: 45 Hz-16 kHz

Nominal impedance: 4 ohm

Recommended amplifier power (RMS): EL Speaker: 20-40 W/Ch

Operating temperature range: 32° to 122° F (0° to 50° C)

Voice coil diameter: EL Speaker: 0.79"

Cone material: Polypropylene cone with cloth surround

Tweeter type    XS Speaker: Aluminum dome

Compass-safe distance: EL Speaker: 100" (254 cm)

Warranty    : EL Speaker: 1 year

Mounting diameter clearance: EL Speaker: 5.12" (130 mm)

Mounting depth clearance: EL Speaker: 1.69" (43 mm)

What's in the Box:

1 x MS-RA60 marine stereo

1 x One pair of EL Series classic white marine speakers

1 x AM/FM stealth antenna

1 x Two 19 ft (6 meter) speaker wires

1 x Dust cover

1 x Mounting gasket

1 x Four 6-gauge, self-tapping screws

1 x Two screw covers

1 x Power and speaker wiring harness

1 x Auxiliary-in, line-out, and subwoofer-out wiring harnesses

12 x Phillips stainless steel mounting screws (4.2 mm x 25.4 mm (8 gauge x 1”))
